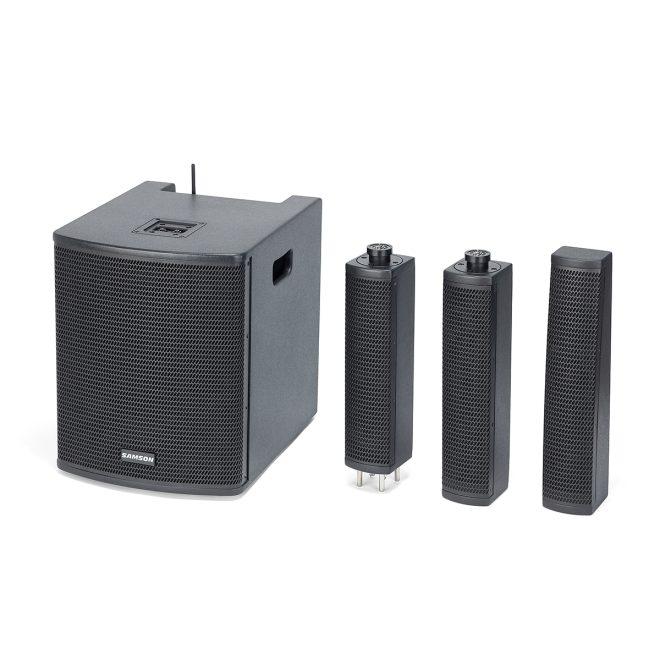

Samson Resound VX8.1 Portable Column Array System

$849.99

SKU: 679550

The Samson Resound VX8.1 is a portable column array system that delivers premium sound in a sleek, easy-to-transport package. This active 700-watt system includes a 12″ subwoofer that can produce up to 125dB SPL, plus a 3-channel mixer, and eight 3.5″ drivers arranged in a vertical column array.

SKU: 679550 Category:

Description

Samson Resound VX8.1 Portable Column Array System | Marching Band Audio

Includes: Interlocking components plus included shoulder bag


The Samson Resound VX8.1 is a portable column array system that delivers premium sound in a sleek, easy-to-transport package, perfect for mobile DJs, bands, singer-songwriters, or anywhere high-quality sound reinforcement is needed. This active 700-watt system includes a 12″ subwoofer that can produce up to 125dB SPL, plus a 3-channel mixer, and eight 3.5″ drivers arranged in a vertical column array that provides 120 degrees to 200 degrees of horizontal coverage. To ensure sound is delivered across an entire audience, the VX8.1 provides a horizontal coverage angle of 120 degrees with the full array in center position, as well as 200 degrees with the two array segments rotated 45 degrees in opposite directions. Meanwhile, the system’s subwoofer delivers tight low end down to 40Hz.

Featuring a lightweight Class D amplifier that delivers 700 watts of power to the system (350W Sub / 350W Array), not to mention onboard 4-preset (Music, Live, Speech, DJ) DSP processing, the VX8.1 has what it takes to fill large rooms with stunning sound. Its 3-channel mixer includes connections for microphones, instruments and line devices. Also, backing tracks or music playback can be conveniently streamed via Bluetooth from any mobile device. Plus, a Thru output enables the ability to integrate a second VX8.1 system and further expand your sound.

Download the multi-language manual (PDF)

Need some help before you order? Contact our Sales Team at (800)457-3501, email sales@bandshoppe.com, or visit our contact form with any questions.

Product Features

  • All-in-one portable column array system that weighs 67lb
  • Interlocking components for easy setup
  • Top-mounted 3-channel mixer integrated into the subwoofer
  • Bluetooth connectivity to connect wireless music sources
  • Selectable 4-preset DSP processing
  • 700-watt active column array system with 12″ subwoofer
  • Eight 3.5″ drivers for 120° to 200° horizontal coverage
  • Onboard DSP with four presets: Music, Live, Speech, DJ
  • 3-channel mixer with mic, instrument, and line inputs
  • Thru output for linking additional VX8.1 systems
  • Portable and easy to transport for mobile professionals
  • 3-point electronic protection circuitry with temperature-controlled fan
  • Solid plywood enclosures with textured paint, steel grilles, and side carry handles
  • Includes shoulder bag for transporting the column array
  • Manufacturer’s item#: SAVX812

Product Specs

Amplifier Class D
System Output Power 700 watts (350W Sub / 350W Array)
System Frequency Response 60Hz–20kHz (-3dB) / 40Hz–20kHz (-6dB)
System Max. SPL 125dB
Subwoofer 12″
Satellite Speakers 8x 3.5″
Horizontal Coverage 120° (center), 200° (rotation)
Inputs XLR-1/4″ combo Mic/Line, XLR-1/4″ combo Line/Instrument, RCA
Outputs XLR Thru (Mix/Channel 1)
Level Controls Channels 1–2, Bluetooth
DSP 4 presets (Music, Live, Speech, DJ)
EQ Column Select (Center/Rotate) switch
Additional Extension segment
Product Dimensions (assembled) 72.5″ (1842mm) × 14.9″ (379mm) × 18.6″ (472mm)
Product Weight 67lb (30.4kg)
